PHS

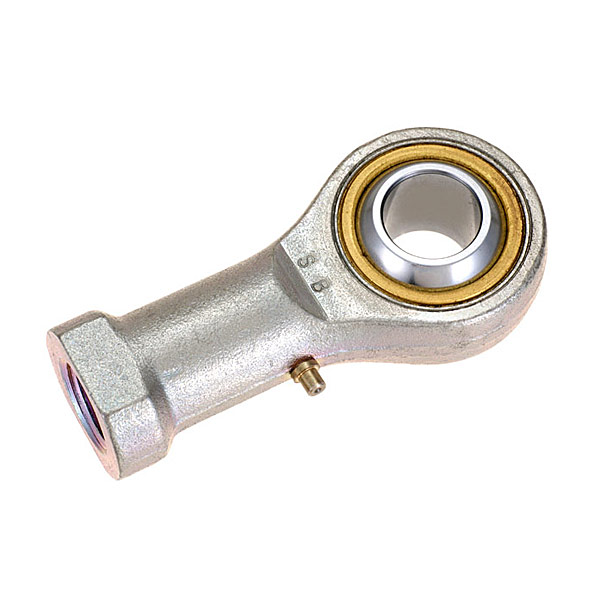

بلبرینگ مفصلی

ابعاد به میلیمتر

B W O H D F A J K L A/F دندانه

O


ظرفیت بار شعاعی
(kgf)

وزن(g)
شماره مدل. H7 +0 -0.1 +0-0.1 +2 -0 +0-0.2 S α
PHS 5 R/L 5 8 7.7 6 17 27 12 9 11 4 9 5×0.8 13 11.11 560 18
PHS 6 R/L 6 9 8.9 6.7 19 30 14 10 13 5 11 6×1.0 13 12.70 690 27
PHS 8 RF/LF
PHS 8 R/L
8 12 10.4 9 23.5 36 17 13 16 5 14 8×1.0
8×1.25
13 15.88 980 48
PHS 10 RF/LF
PHS 10 R/L
10 14 12.9 10.5 27 45 21 15 19 7 17 10×1.25
10×1.5
13 19.05 1,320 82
PHS 12 RF/LF
PHS 12 R/L
12 16 15.4 12 32 50 24 18 22 7 19 12×1.25
12×1.75
13 22.23 1,670 123
PHS 14 RF/LF
PHS 14 R/L
14 19 16.8 14 36 57 27 20 25 8 21 14×1.5
14×2.0
15 25.40 2,060 170
PHS 16 RF/LF
PHS 16 R/L
16 21 19.3 15 39 64 33 22 27 8 22 16×1.5
16×2.0
15 28.58 2,500 214
PHS 18 R/L 18 23 21.8 17 44 71 36 25 31 10 27 18×1.5 15 31.75 2,940 305
PHS 20 R/L 20 25 24.3 18 47 77 40 28 34 10 30 20×1.5 15 34.93 3,430 387
PHS 22 R/L 22 28 25.9 20 50 84 43 30 37 12 32 22×1.5 15 38.10 4,120 540
PHS 25 R/L 25 31 29.6 22 56 94 48 34 42 12 36 24×2.0 15 42.85 7,240 750
PHS 30 R/L 30 37 34.8 26 67 110 56 40 50 15 41 30×2.0 15 50.80 9,210 1,130
